At a multi-unit property on Potter Street in Black Rock VIC 3193, our team at Your Choice Plumbers was contacted by the body corporate manager after the complex received unusually high water bills.
The site consisted of four single-storey units built in the 1970s, all connected to a shared 32mm main water supply line, with individual sub-meters feeding each residence. After initial discussions with the owners, it became clear that individual usage patterns were normal, which immediately shifted attention toward the common supply line instead of the units themselves.
This is exactly the type of problem where owners and body corporates start asking, “could we have a hidden underground water leak?” or “why is the main meter showing flow when no one’s usage has changed?” As an experienced plumber Black Rock, we often find that older shared services can hide underground failures for a long time, especially when the surrounding soil absorbs the leak before it becomes visible.
The Problem – High Water Bills with No Visible Leak
The first step was to confirm whether the unusual billing pattern was coming from one unit or from the shared main.
Our testing showed:
- the individual sub-meters were recording normal usage
- the main meter was showing continuous flow
That was a critical finding because it confirmed the leak was not inside one of the units. The water loss was happening on the shared supply line running through the driveway.
This is a very common pattern on older multi-unit sites. The bills go up, the individual occupiers deny abnormal water use, and yet the main meter keeps turning because the leak is hidden somewhere between the common supply and the individual branches.
Why This Underground Leak Was Hard to Detect
Unlike many underground leaks, there were no obvious wet patches, bubbling soil, or visible water surfacing through the driveway.
The reason came down to local ground conditions.
Because the property sat on sandy soil, the leaking water was being absorbed into the ground rather than rising clearly to the surface. That meant visual detection alone was not going to locate the fault reliably.
This is a very important point for homeowners and body corporates to understand. In coastal and bayside areas like Black Rock, hidden underground leaks can remain invisible much longer than expected. That is why proper water leak detection Melbourne methods are so important when billing or meter readings suggest a problem but the ground gives no clear clue.
Acoustic Leak Detection Pinpointed the Fault
Because the leak could not be located visually, we arranged specialist acoustic detection to identify the exact failure point.
This process included:
- line tracing
- ground microphones
- acoustic listening equipment
After approximately one hour of testing, the leak was pinpointed beneath the driveway between Units 3 and 4.
This was the turning point in the job because it meant we could move from broad suspicion to precise excavation, reducing unnecessary disruption and avoiding guesswork across the rest of the site.
Excavation Confirmed the Cause of the Failure
Once the leak was located, we cut a 600mm x 600mm section of concrete and excavated to approximately 600mm depth.

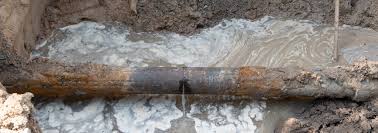

When the pipe was exposed, the cause became clear.
The original shared main was galvanised steel pipework from the 1970s, and the line had corroded and failed. This is a very common issue on older properties where galvanised water mains have been left in service for decades.
Over time, galvanised pipework can suffer from:
- internal corrosion
- external corrosion
- reduced flow capacity
- thinning of the pipe wall
- eventual cracking or failure under pressure
So while the billing issue was the first symptom the owners noticed, the real underlying problem was ageing infrastructure that had reached the point of failure.
Repairing the Shared Water Main Properly
To restore the supply, we carried out a controlled repair using a:
32mm Dura Full Circle Repair Clamp
This allowed us to re-establish the integrity of the shared main line efficiently while keeping the excavation and disruption controlled.
However, the repair itself was only part of the job.
Before restoring water supply back into the complex, we carried out a very important protection step:
- all unit lines were disconnected
- the common system was flushed thoroughly
- then each unit line was reconnected and tested
This prevented debris from the failed galvanised pipe from travelling into internal fixtures and causing:
- blocked mixer cartridges
- damaged tap strainers
- toilet inlet valve issues
That flushing step is one of those details that makes a huge difference to the long-term outcome. Without it, the leak may be repaired, but the site can still end up with secondary plumbing problems caused by sediment entering the internal systems.
Pressure Testing Revealed a Bigger Compliance Risk
Once the shared water main had been repaired and the units were safely reconnected, we tested the pressure on the main service.
The reading came back at 740 kPa.
That is well above the 500 kPa maximum referenced under AS/NZS 3500, and it was another major finding.
This meant the site was not just dealing with an ageing pipe failure. It was also operating under excessive water pressure, which significantly increases the likelihood of:
- pipe failures
- flexible hose bursts
- leaking taps
- premature wear on toilet valves
- ongoing stress across the plumbing system
This is why pressure regulating valve installation is often such an important companion service on older sites. If the pressure issue is ignored, the repaired section may hold, but another weak point elsewhere in the system is more likely to fail later.
Installing a Pressure Regulating Valve to Protect the Complex
To bring the shared water service back into safer and more compliant operating conditions, we installed a:
Zurn Lead-Free ZPR Pressure Reducing Valve (32mm)
This upgrade:
- reduced the operating pressure to a compliant level
- helped protect the entire complex
- reduced future stress on the main and sub-lines
- lowered the risk of repeat plumbing failures across the site
This was an important long-term protection step, not just a compliance detail. On older shared plumbing systems, excessive pressure and ageing infrastructure often work together to create repeat failures, so it made sense to address both at the same time.
Surface Restoration and Final Completion
After the repair and pressure upgrade were completed, we restored the excavation area by:
- backfilling with sand
- applying cold mix asphalt
- compacting the surface in layers
This allowed the driveway area to be reinstated with minimal disruption while still completing the plumbing work properly beneath it.
The end result was a much more complete outcome than simply “stopping a leak.” The site had:
- the underground failure accurately located
- the main repaired properly
- the internal plumbing protected through flushing
- the pressure brought back under control
- the driveway reinstated cleanly
The Result – Leak Resolved and Complex Better Protected
Once the job was complete, the body corporate and residents had:
- the hidden underground leak found and repaired
- unnecessary water loss eliminated
- the shared main supply restored
- internal fixtures protected from galvanised debris
- mains pressure reduced to a safer operating level
- a stronger long-term plumbing outcome for the whole complex
The owners and body corporate manager were very pleased with both the structured diagnostic process and the low level of disruption given the complexity of the job.
Why This Job Matters
This case is a strong example of why underground water leaks and excessive pressure should never be treated as separate issues on older shared plumbing systems.
In many cases, they are connected.
The leak is what gets noticed first, but the pressure problem is what helps keep stressing the system behind the scenes. That is why proper water leak detection Melbourne, controlled repair work, and pressure regulating valve installation often belong in the same solution.
Without that broader system view, the site may simply move from one failure to the next.
Our Home Plumbing Experts Approach
At Your Choice Plumbers, we do not just look at the obvious fault in front of us.
We focus on both repair and prevention, especially on older properties and shared systems where one visible issue often points to a broader underlying risk. In this case, that meant not only locating and repairing the underground main leak, but also protecting the complex from future failures by correcting the excessive water pressure.
That is the difference between a temporary repair and a more complete plumbing solution.
